When feeding wood battan, the single wood battan can convert 90 degree and automatic spreading glue by opositioning conveyor

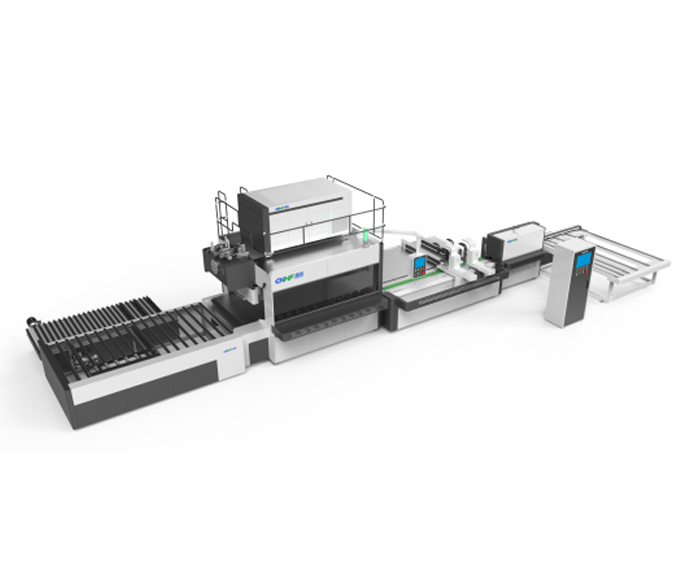

When feeding wood battan, the single wood battan can convert 90 degree and automatic spreading glue by opositioning conveyor, Automatic arrangement machine will swervw single battan to 90 degree and automatically arrange wood battan into board shape in advance, then push the arranged board into teh inside of the high frequency wooden board joining machine.
Feeding system equipped with automatic spray glue device, glue saving reach more than 30%, improved the plate flatness, improve the rate of the output.
Labor saving: The machine can be operated by a single worker, thus the labor intensity is greatly reduced.
Efficiency stability: Completely overcome the manual operation which leads to unstable production efficiency, guarantee the stability of production line and efficient work.
| Type | CGPB-45ZPZL-CM | CGPB-58ZPZL-CM | CGPB-48ZPZL-CM | CGPB-116ZPZL-CM |
| Workbench size(mm) | 1300×2500 | 1300×2500 | 1300×3200 | 1300×3200 |
| Splicing thickness（mm） | 10-50 | 10-80 | 10-50 | 10-120 |
| Mini. joining length（mm） | 450 | 450 | 450 | 450 |
| Upper pressure（T） | 20 | 20 | 20 | 20 |
| Side pressure（T） | 25 | 38 | 28 | 96 |
| Total Voltage Power（KVA） | 30 | 30 | 40 | 40 |
| Overall dimension（mm） | 13000×4600×3400 | 15400×4600×3400 | ||
| Joining Width Range（mm） | 1000-1300 | |||
| Wood Strip Auto Adaption Width（mm） | 30-100 | |||
| Type | CGPB-68ZPZL-CM | CGPB-93ZPZL-CM | CGPB-85ZPZL-CM | CGPB-98ZPZL-CM |
| Workbench size(mm) | 1300×3600 | 1300×3600 | 1300×4500 | 1300×4500 |
| Splicing thickness（mm） | 10-50 | 10-50 | 10-50 | 10-80 |
| Mini. joining length（mm） | 450 | 450 | 450 | 450 |
| Upper pressure（T） | 30 | 30 | 40 | 30 |
| Side pressure（T） | 38 | 63 | 45 | 68 |
| Total Voltage Power（KVA） | 70 | 70 | 70 | 70 |
| Overall dimension（mm） | 18000×5200×3400 | 21400×5300×3400 | 18000×5200×3400 | |
| Joining Width Range（mm） | 1000-1300 | |||
| Wood Strip Auto Adaption Width（mm） | 30-100 | |||
The furniture factory in Mexico has used our automatic HF board joining production line, which has improved production efficiency and saved two-thirds of the laber.
