It can assemble all kinds of wooden door, closet door and cabinet door. Easy operation: that no cushion wood needs to added during workpiece assembly.
It can assemble all kinds of wooden door, closet door and cabinet door.
Easy operation: that no cushion wood needs to added during workpiece assembly.
Feeding mode: It can automatically select pass-through type or reciprocating type. Can connect with front and back ends, form an automatic assembly line.
High efficiency: It only takes 20-30s to assemble one door, 40-50 wooden doors can be assembled every hour.

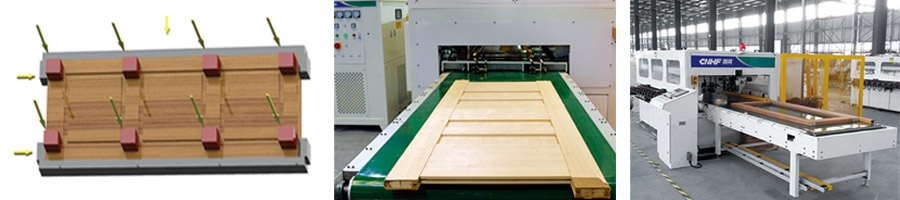

Lateral pressure is overall pressurization to ensure the straightness accuracy of the assembling work piece. Its gauge accuracy is high.
The position of heating electrode numerical control, only input every heating position on touch screen without manually adjusting.
It can link up customers MES system, then can achieve scanning working, also can generate production data statistics report. It can provide data support for digital production. It is suitable for customized flexible production in small batches with multiple specifications.

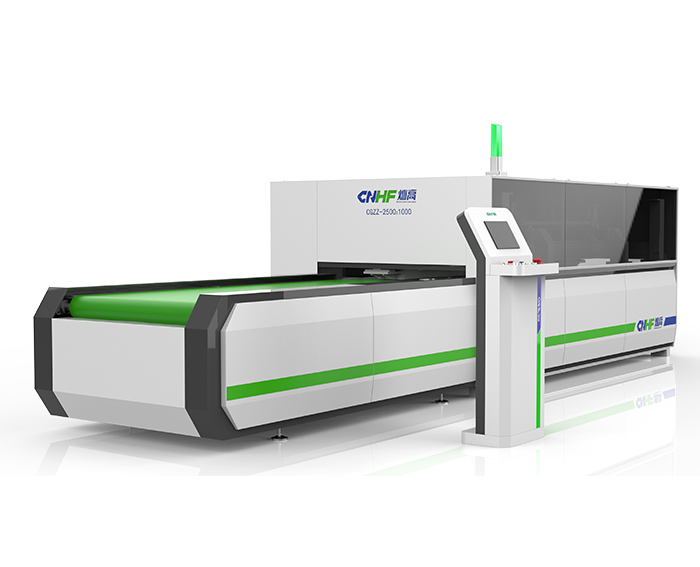

| Type | CGZZ-2500×1000P | CGZZ-2500×1000 |
| Max. joining size (mm) | 2500×1000 | 2500×1000 |
| Min. joining size (mm) | 1800×600 | 1800×600 |
| Pressurizing mode | Servo motor | Servo motor |
| Size input method | Scan code setting | Automatic induction |
| Overall dimension (mm) | 6700(L)×2150(W)×2650(H) | 6700(L)×2150(W)×2650(H) |
| Weight (t) | 5 | 5 |
