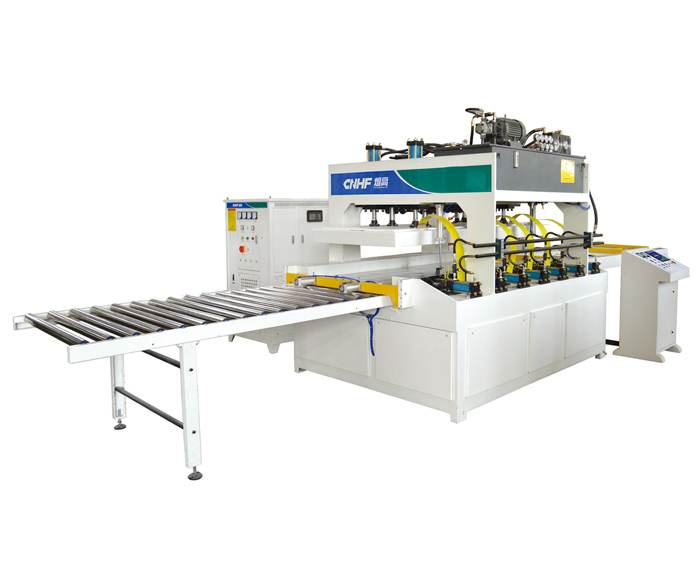

Upper plate could lift vertically, and it installs the synchronous system. It has some advantages, such as high flatness, high efficiency. The thinnest board it can joining is 6 mm. It is the updated version of high frequency board joining machine.
Type | CGPB-45PZ | CGPB-58PZ | CGPB-48PZ | CGPB-80PZ | CGPB-90PZ | CGPB-110PZ |
Workbench size (mm) | 2500×1300 | 2500×1300 | 3200×1300 | 4200×1300 | 5000×1300 | 6000×1300 |
Splicing thickness (mm) | 8-50 | 8-80 | 8-50 | 10-80 | 10-50 | 8-50 |
Upper pressure (t) | 20 | 20 | 20 | 30 | 40 | 50 |
Back pressure (t) | 25 | 38 | 28 | 50 | 50 | 60 |
Overall dimension (mm)(L)×(W)×(H) | 8700×4400×2300 | 8700×4400×2300 | 10200×4400×2300 | 13200×4400×2300 | 15600×4400×2400 | 18200×5200×2400 |
Weight (t) | 6.3 | 6.5 | 7.5 | 9.5 | 12 | 13 |
Feeding mode | Automatic | Automatic | Automatic | Automatic | Automatic | Automatic |
Note: The default operation mode is human-machine interface, the type suffixes"-CM". It adopts auto-stacking technology with suffixes "-B".
