HF(RF) Wooden Frame Joining Machine (For Photo Frame Etc)

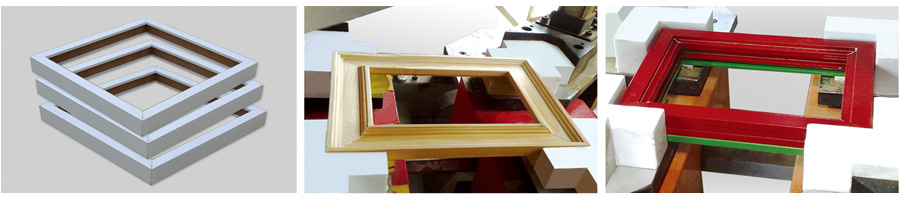

Accuracy assembling wooden frame, wrapping paper, MDF frame, solidwood frame, painting frame, mirror frame and writing board.

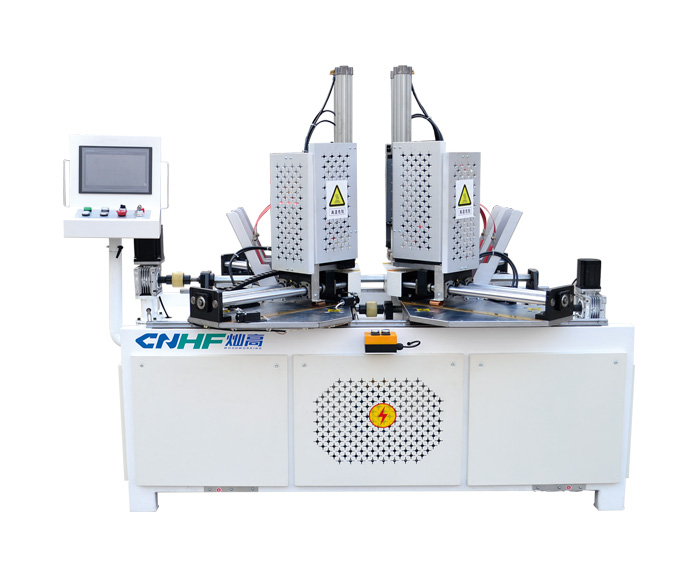

HF(RF) Universal Wooden Frame Joining Machine (Intelligent)
Product Description

Accuracy assembling wooden frame, wrapping paper, MDF frame, solidwood frame, painting frame, mirror frame and writing board.


High speed: Glue is solidified in 2-6 seconds, and it can operate on the assembly line.

Saving labor: It saves a lot of time for loading and checking, and operate without fixtures.

High quality: No need to use staple gun and improved subsequent producedures, the glue can solidified under high pressure.

High precision: It adopt the ball screw and precision linear guide, and control the machine with motor, diagonal error minimization.

low cost: A frame only costs about 0.003-0.04 KWh.

Convenience: It adopts touch screen of human machine interface and PLC automatic control for dimension adjustment, with parameter display, including pressure, current, heating time and cooling time.

TypeCGZK-1200×800CGZK-2000×800
Max. Working size (mm)1200×8002000×800
Min. Working size (mm)80×80130×130
Pressurizing modePrecision lead screw
Overall dimension size (mm)2100(L)×1270(W)×1750(H)2900(L)×1270(W)×1900(H)
Weight (t)1.11.2
