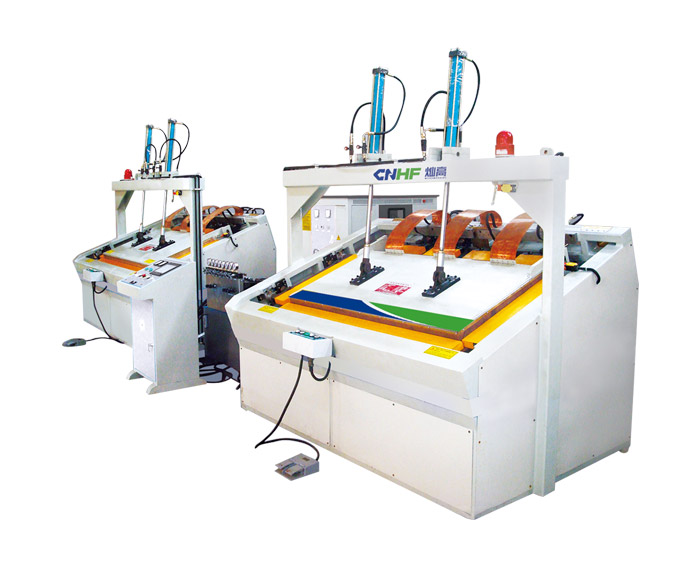

20T high frequency joining machine for wooden board and wooden frame. Application: Joining of tabletop, cabinet door, laminated or matched floor.
20T high frequency joining machine for wooden board and wooden frame.
Application: Joining of tabletop, cabinet door, laminated or matched floor.
| Type | CGPZ-10 | CGPZ-20 | CGPZ-27 |
| Workbench size (mm) | 1200×800 | 1600×800 | 2200×800 |
| Splicing thickness (mm) | 10-30 | 10-30 | 10-50 |
| Upper pressure (t) | 4 | 5 | 5 |
| Back pressure (t) | 4 | 10 | 17 |
| Side pressure (t) | 2 | 5 | 5 |
| Overall dimension (mm) | 3400(L)×1600(W)×2200(H) | 3730(L)×1650(W)×2400(H) | 4300(L)×1650(W)×2400(H0 |
| Weight (t) | 2 | 3 | 4 |
| Feeding mode | Manual | Manual | Manual |
Note: The default operation mode is button of huamn-machine interface, the touch screen of human-machine, the type suffixes "CM". (such as CGPZ-20, you can write CGPZ-20-CM).
